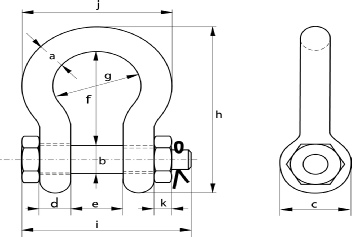

Green Pin Super Bow Shackle with Safety Bolt

Material: Bow and pin alloy steel, Grade 8, quenched and tempered

Safety Factor: MBL equals 5 x WLL

Standard: Meets performance requirements of US Fed Spec RR-C-271, Type IVA Class 3, Grade B

Finish: Hot dipped galvanised {175 ton shackle is painted)

Certificate: As standard an EC declaration of conformity is supplied, also upon request a certificate of basic raw material and manufacturer test certificate. All shackles starting from 150 tons are supplied with a Lloyd's Register of Shipping certificate on proof load










Download PDF
