Single Acting Cylinder - TS
Capacity: 5 – 100 tonnes.
Stroke: 50 – 200mm.
Maximum Pressure: 700 Bar.
Hydraulic Coupler: TBC 381F(PT3/8).
Pump: To use 30% more than oil capacity of Cylinder.
Label is marked with: Tecpos logo, Capacity, Stroke & Max working pressure.

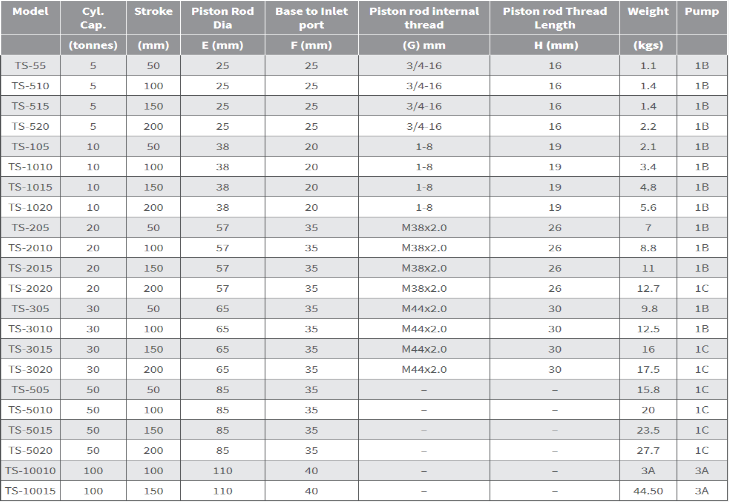

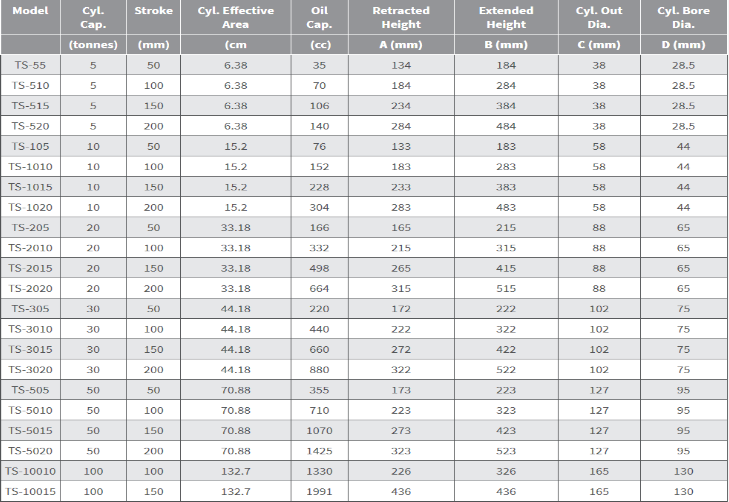

Understanding the Model No: TS-55
T – TECPOS
S – Single – Acting
5 – Capacity, 5ton
5 – Stroke, 50mm
