TDC - Double Acting Cylinder

Download PDF

    Capacity: 5 – 1000 tonnes.

    Stroke: 150 – 300mm.

    Maximum Pressure: 700 Bar.

    Hydraulic Coupler: TBC 381F(PT3/8).

    Faster Retraction under hydraulic power.

    Removable plunger caps.

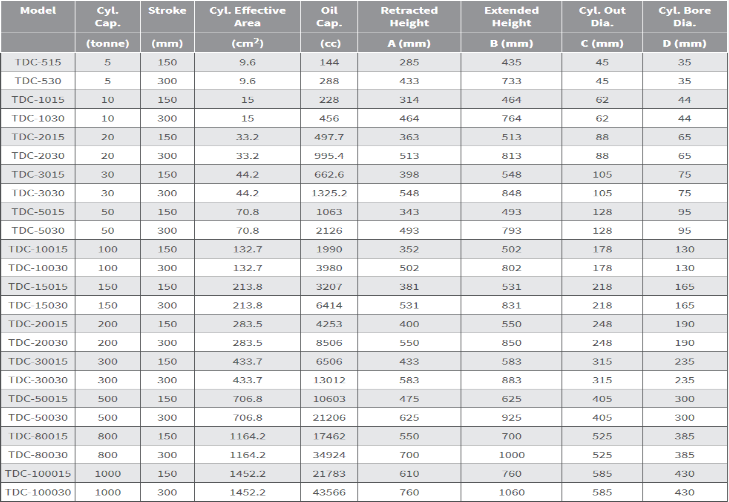

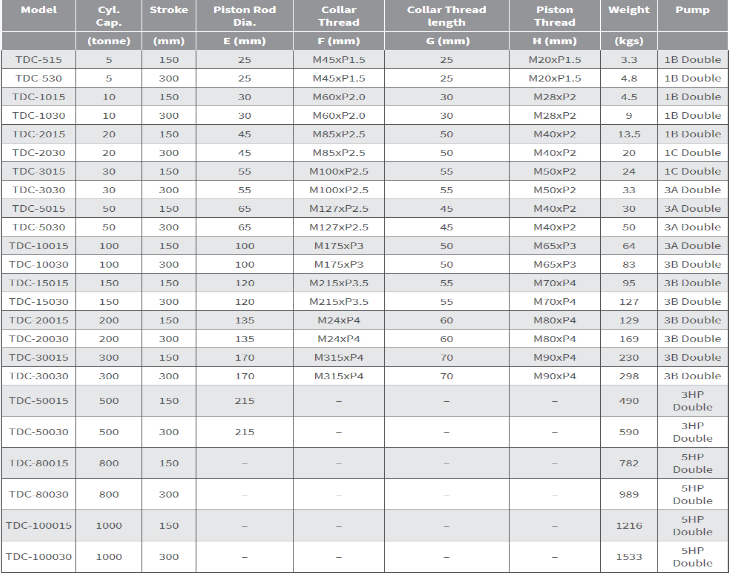

Understanding the Model No: TDC-515

    T – TECPOS

    DC – Double Acting Cylinder

    5 – Capacity, 5ton

    15 – Stroke, 150mm
